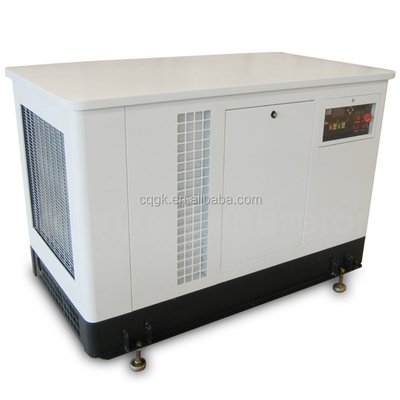

OEM dual fuel soundproof silent standby natural gas NG/liquid propane LPG generator 30kw
Genset Model | PD30REG |
Output | |
Rated power (LPG) | 30KW (37.5KVA) |
Rated power (NG) | 27KW (33.75KVA) |
Rated voltage / frequency | 220V-60hz or 400V-50hz |
Rated current (A) (LPG) | 46.4A/PHASE |
Rated current (A)(NG) | 43.5A/PHASE |
Phase | 3 phase |
Rated speed (rpm) | 3000/3600 |
Power factor | 0.8 |
Engine | |
Engine Model | Lifan 481 |
Bore*Stroke (mm*mm) | L4-81*77 |
Compression ratio | 9.5:1 |
Ignition system | Transistor contactless ignition |
Start system | Electric start |
Fuel type | NG/LPG |
Oil capacity (L) | 3.5 |
Cooling system | Liquid cooling |
High temperature shutdown | with |
Low oil pressure shutdown | with |
Alternator | |
Pressure regulating system | AVR |
Excitation type | brushless |
Stator winding material | copper |
Rotor winding material | copper |
Controller Brand | Smartgen |
Unit | |
Protection class | IP 23 |
Emergency stop switch | with |
Closed muffler | with |
Grounding system | Frame ground |
Noise dB (A) / 23ft (7M) | 73 |
LPG consumption (100% load m3 / hr) | 9.3 |
NG consumption (100% load m3 / hr) | 10.0 |
LPG inlet pressure range kPa (in.H2O) | 1.7-2.7 (7-11) |
NG inlet pressure range kPa (in.H2O) | 1.3-2.7 (5-11) |
Unit size (L*W*H) mm | 1560×890×970 |
Packing size (L*W*H) mm | 1640*970*1100 |
N.W. (kg) | 525 |
G.W. (kg) | 565 |
Important Notes On Ordering Products
1. Order our products directly on the Alibaba platform,Our company defaults to the CFR price (that is, cost plus sea freight, which is usually delivered by the port of the destination country, and the buyer is responsible for customs clearance,etc.). If the buyer needs door-to-door or the warehouse and destination designated by the buyer, please contact us on Alibaba or leave a message.
2. All our products only support shipping to the port,or shipping to the door,or land transport,and do not support air transportation.
3. If there are specific Chinese port (such as Shanghai, Ningbo, Shenzhen, Guangzhou, Qingdao, etc.), please leave a message.If you need to deliver to a designated port or warehouse or residence in your country, please leave a note so that our seller can quote you the shipping cost in time(please tell me your email).
4. Provide product details as much as possible, such as:
A, Voltage (110/220/230/380/400V)? frequency (50/60HZ)? Single phase or three phase?
B, Plug type (European, American...)?
C, Need wheels?
D, Use of the product?
5. Provide detailed consignee information: company name (required, except for customs clearance in the US), contact, phone, email, address.
6. The product sample picture shows the goods, please refer to the actual receipt of the goods.
1 Wooden packing
2 Sea LCL or Sea FCL or Land Transport.The port of departure can choose ports such as
Chongqing, Shanghai, Guangzhou,Shenzhen or Qingdao...
1 Q: How long is the warranty?
A: 1000 hours or 12 months warranty, lifetime maintenance.
2 Q:How long is the delivery?
A: Our warehouse is in stock and can be delivered quickly to the customer's designated destination port.
3 Q: Which ports can be shipped?
A: Shanghai, Ningbo, Guangzhou, Shenzhen, Qingdao, Tianjin, Chongqing, etc.
4 Q: What are the transportation methods?
A: Sea LCL, Sea FCL, Land transport, Does not support Air transport.
5 Q: Can you customize?
A: Yes
6 Q: New customer payment method?
A: 30% T/T in advance + 70% balance before shipment.
