Inicio /Productos/Generador de propano industrial/Clean energy ! ! ! 25KVA NG Gas/LPG Natural Liquid Propane POWERGEN Generator 20KW BNL20SE Water Cooled Silent Type

Clean energy ! ! ! 25KVA NG Gas/LPG Natural Liquid Propane POWERGEN Generator 20KW BNL20SE Water Cooled Silent Type

1 Set
MOQ
Clean energy ! ! ! 25KVA NG Gas/LPG Natural Liquid Propane POWERGEN Generator 20KW BNL20SE Water Cooled Silent Type
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Model Number: BNL20SE
Rated Power: 20KW
Output Type: AC Three Phase
Rated Voltage: 110-440V
Rated Current: Depends on voltage
Speed: 3000/3600
Frequency: 50/60HZ
Color: Customized
Fuel type: Natrual Gas/ LPG
Optional: Auto Transfer Switch
Información básica
Model Number: BNL20SE
Pago y Envío Términos
Packaging Details: Wooden Crate
Supply Ability: 3000 Set/Sets per Month
Descripción de producto
Product Description

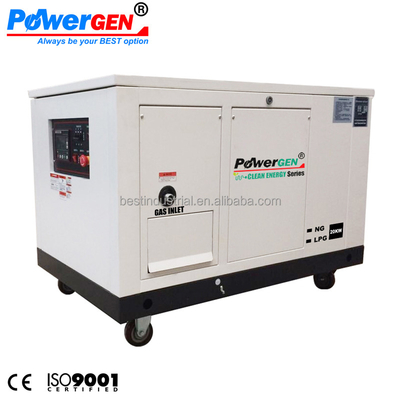

POWERGEN Best Selling model BNL20SE is a SUPER SILENT type 3-Phase DUAL FUEL (NG/LPG) Generator. It is driven by high quality Lifan water-cooled automobile grade gas engine 465QR. With a rated output of 20KW/22KW 50/60Hz, it can provide automatic whole-house power for mid-sized homes, or essential circuit protection for small and medium businesses such as convenience stores and offices.
Specifications
SPECIFICATIONS OF GASOLINE GENERATOR
MODEL NO.:
BNL20SE
Frequency
Hz
50
60
Voltage
V
110-400
Alternator type
Three phase, 2-pole, Self-excited, Brushless with AVR,  Insulation class H, IP23
Rated Output
KW/KVA
20/25
Max. Output
KW/KVA
22/27
Power Factor
0.8
Engine Type
Water-cooled, 4-cylinder, 998cc, Natural aspired
Engine Model
465QR
Bore x Stroke
mm
65.5 x 74
Compression Ratio
9.5:1
Ignition
ECM
Cranking motor
Model: QDY112; 12V 0.8KW
Charging alternator
14V 350W
Engine Speed
RPM
3000
3600
Fuel Consumption
M3/Hr
NG: 6.3
LPG: 6.1
Gas inlet pressure
kPa
NG: 1.3-2.7
LPG: 1.7-2.7
4- Protections
Yes
Starting Method
Electric Starter with Battery
Emergency Stop
Emergency Stop Button
Battery Capacity
V/AH
2pcs x 12/45
Battery cold cranking
CCA
525
Dimensions
LxWxH
1200 x 740x 826
N.W./ G.W
Kgs
325/345
Loading Quantity
PCS
20'GP:  22
40'GP: 46
Features

Canopy of Super Silent

- Sound/Noise Proof & Rain Proof
The noise level is much lower than any common gasoline generators. 65 dB @7meters.


- Efficient heat radiation

The canopy is designed of high efficienty on heat radiation to prevent auto shut-down due to overheat inside.

Water-cooled Gas Engine

Engine Model: 465QR

Brand: Suzuki

Type: 4-Cylinder, Water cooled, natural aspired, 998cc

Starting system: Electric Starter with battery

Charging alternator: 14V 350W

Battery: 2x12V45AH

Full Copper Brush Alternator

Model: PG-20

Brand: POWERGEN

Power: 20KW/25KVA

Power factor: 0.8

Type: Brushless, 2-pole, with AVR(+-1%), Self-excited, IP23

Speed governor: Electronic

Control Panel

- Emergency stop button

- Smartgen HSC940 Digital LCD Controller: Voltage (V),

   Frequency(Hz), Working Hours, Fuel level etc.

- Fuel Switch, Power Switch

- Main Circuit Breaker

- Socket Circuit Breaker

Industrial Grade Radiator

- The radiator is specially designed for the Water cooled Suzuki engine 465QR

- Largely cooling down the temperature of the running engine.

- Compact and easy for maintenance



Optional

ATS

With an ATS, the generator will be auto started or auto shut down while the city power is cut or recovered.

Tri-fuel: NG/LPG/Gasoline

The NG/LPG generator can be made with a gasoline fuel tank to run gasoline as well, to be a tri-fuel generator.

Wheels

The generator can be equipped with 4xwheel for easier transportation.

Packaging
Packaging
Size (mm)
1290 (L) * 800 (W) * 900 (H)
Gross Weight (Kgs)
345



Packaging Details

1) Inner Packaging: Polybag

2) Outer Packaging: Fumigation free Wooden crate
Assembly Line
Certifications
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.
