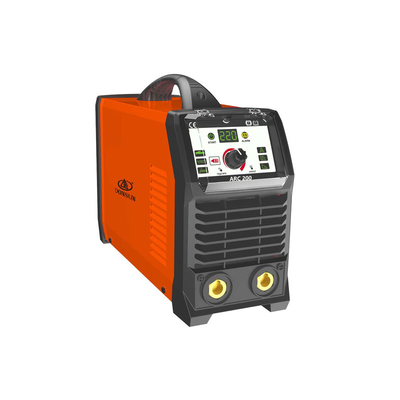

Inicio /Productos/break/PORTABLE ARC 200 1Phase 220V, wide voltage: 95~295V arc generator welder, portable inverter welding machine

PORTABLE ARC 200 1Phase 220V, wide voltage: 95~295V arc generator welder, portable inverter welding machine

100 Cartons
MOQ
PORTABLE ARC 200 1Phase 220V, wide voltage: 95~295V arc generator welder, portable inverter welding machine
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Rated Input Voltage: 6.8
Rated Duty Cycle @40°C: 60% 200A 100% 120A
Max. Load Power Capacity: 46
Rated Output Voltage: 230 V
Rated Output Current: 200A
Condition: New
Pulse Frequency: 50/60HZ
Motor Type: DC MOTOR
Dimensions: 290x135x220mm
Usage: Metal Welding
Weight (KG): 4.5 KG
Warranty: 1 Year
Key Selling Points: Easy to Operate
Applicable Industries: Garment Shops, Building Material Shops, Machinery Repair Shops, Food & Beverage Factory, Farms, Home Use, Retail, Printing Shops, Construction works , Energy & Mining
Feature: PORTABLE
Rated Input Power (KW): 6.8
Rated input current(A): 46
Duty Cycle(40 10Min): 60% 200A 100% 120A
No Load Voltage(V): ≥80%
Welding Current Range(A): 10~200
Arc Current: 200A
Certificación: CCC, CE
Power: 6.8KW
Información básica
Certificación: CCC, CE
Pago y Envío Términos
Descripción de producto

Product Description

 Features:

Extra functions
“Hot Start”function for easier arc striking;
“Arc Force”to prevent electrode sticking to the piece;smoother welding and deeper penetration;
Built-in Anti-Sticking device to prevent overload and ease the electrode removal from the workpiece.

Weight
Extremely low weight and versatility.

Protections
Fully protected against over-voltage undervoltage and over-heat.

Generator friendly
Designed to work with diesel generators and to avoid failures due to its voltage spikes.



Model/Parameters ARC 200
power supply voltage(V) 1Phase 220V, Wide Voltage: 95~295V
Fre.(HZ) 50/60
Rated Input Power (KW) MMA: 10.6, TIG:8.3
Rated input current(A) MMA: 46, TIG 36
Duty Cycle(40℃ 10Min)

25% 200A

60% 130A
100% 80A
No Load Voltage(V) 70
Welding Current Range(A) 10~200
Efficiency ≥80%
Net Weight(Kg) 4.0
Dimensions(mm) 280x135x220
Electrode Diamerter(mm) Φ1.6~Φ4.0
Electrode Type 6013,7018 etc.
power factor 0.65
Insulation Class H
Protection Class IP23
Cooling AF
