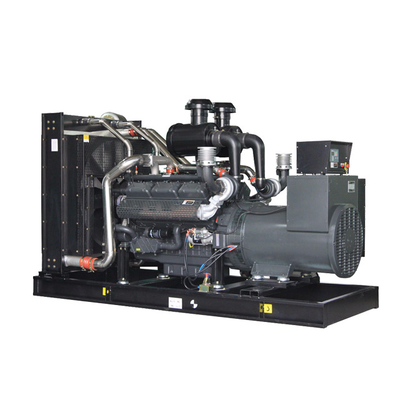

China JTS-500GF diesel generator SDEC 400kw 500kva diesel main power genset 50Hz 400V power generation

1 set
MOQ
China JTS-500GF diesel generator SDEC 400kw 500kva diesel main power genset 50Hz 400V power generation
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Model Number: JTS-500GF
Rated Voltage: 230/400V
Rated Current: 794A
Speed: 1500rpm/1800rpm
Frequency: 50Hz/60Hz
Diesel engine: SDEC SC25G690D2
Alternator: Stamford/Marathon/Leroy Somer etc.
Genset type: Open/silent/tailer/containerized
Controller: Deepsea/Smartgen/ComAp etc.
Fuel tank: 8-10hours
Prime power: 500kva/400kw
Certificate: CE/ISO9001
Warranty: 12 Months/1000 Hours
Cooling method: Closed Water-cooled
Starting system: Electric Strater
Información básica
Certificación: CE/ISO9001
Model Number: JTS-500GF
Pago y Envío Términos
Packaging Details: Wood case
Supply Ability: 100 Set/Sets per Month
Descripción de producto
Product Overview

Prime Power 400KW 500KVA China Shangchai SDEC diesel generator

Shanghai Diesel Engine Co., Ltd. was formerly known as Shanghai Diesel Engine Factory. It was founded in 1947. In 1993, it was restructured into a state-owned holding company that issued A and B shares domestically and abroad. It is now part of the SAIC Group and is engaged in engines, parts and generators. A large-scale national high-tech enterprise engaged in R&D and manufacturing, with a nationally recognized technology center and post-doctoral workstation, an industry-renowned automated production line, and a passenger car standard quality management system. In the course of nearly 70 years of development, the company has produced products all over the world. At present, it has seven series of diesel and natural gas engines, including R, H, D, C, E, G, and W, with power ranging from 50 to 1600 kW, which are mainly used in construction machinery , Trucks, buses, power generation equipment, ships, agricultural machinery and other fields. The company insists on being customer-centric, and relying on the "five vertical and seven horizontal" road network, it has built a sales and service service composed of 19 offices, 7 distribution centers, more than 300 core service stations, and more than 1,000 service providers. Support system.
FEATURES AT A GLANCE
ORIGINAL ENGINE AND ALTERNATOR COMPACT DIMENSIONS SOLIDLY STRUCTURE SAFETY FRAME SIMPLE CONTROL EASY MAINTENANCE VERSATILITY

Open type
Silent type
Trailer type
PRODUCT SPECIFICATIONS
Genset Model
Diesel Engine
Alternator
Controller
Prime Power
JTS-500GF
SDEC SC25G620D2
Stamford
Deepsea
400kw/500kva






Engine Data
Engine model
SDEC SC25G690D2
1
Air intake system
Turbo, water-air cooling
2
Fuel system
DI type fuel pump
3
Cylinders
12 V
4
Bore and stroke
135x150(mm)
5
Compression ratio
16
6
Displacement
25.8L
7
Rotation speeed
1500 rpm
8
Standby power
505 kw
Governor
Electronic





Alternator data
Alternator model
Stamford/Marathon/Leroy Somer etc.
Number of phase
3
Connecting type
3 phase 4 wires, Y type connecting
Number of bearing
1
Power factor
0.8
Protection grade
IP23
Excitor type
Brushless, self-exciting
Power capacity
500kva




Controller data
Controller brands: Deepsea, Smartgen, ComAp, PCC, Datacom, etc.
4-line back-lit LCD text display
Multiple display languages
Data logging facility, Internal PLC editor
Fully configurable via PC using USB communications
3-phase generator sensing and protection, overload alarm
Protection: over-speed, low-speed, over-current, low-oil, low-fuel, high-temp, etc.
PRODUCT CONFIGURATION
Diesel engines
Alternators
Controllers
Diesel engines we can supply are including Cummins, Perkins, Volvo, MTU, Mitsubishi, Doosan, Baudouin, Deutz and China Yuchai, Weichai, SDEC, Yangdong, etc.
Alternators we can supply are including Stamford, Marathon, Leroy Somer, ABB, Mecc Alte, Engga, Jinte, etc. We also can provide OEM and ODM for alternators.
Controllers we can supply are including Deepsea, PCC, ComAp, Smartgen, Datakom, etc. Automatical or manual control, ATS, AMF, Synchronizing, Remote monitor system are optional.
Successful Project
Project in Philippines
Project in Kenya
Project in Russia
Why Choose Us
Our advantages
1. Jinte is devoted to the R&D and manufacturing of diesel generator sets since 2002. And Jinte new factory covers an area of 25,000 square meters. 2. Jinte production is submitted to ISO8528, GB/T2820-97 and CE certification, and quality certified by ISO9001 & ISO14001 Management System to guarantee high-quality products and services. 3. Jinte is maintaining long term strategic friendship cooperation with domestic and abroad famous manufacturers of Cummins, Perkins, Doosan, SDEC, Mitsubishi(SME), Deutz, Wuxi Wandi, Leroy Somer, Stamford, and Marathon, etc. 4. We have so wide products ranges from 5kva to 5000kva for the diesel generator set; power from 25kva to 1500kva for gas generator set; 5. Soundproof/weatherproof type, container type generator set; movable, vehicle type generator sets. Regarding the electrical control systems, it covers the Auto control panel, Synchronization panels, ATS, etc. 6. Jinte can also provide customized solutions due to customer requirements upon our standard product supply in order to meet the demand of the market. To focus on the global market, Jinte as an international brand, and constantly improve our quality level and maximize customer profitability is Jinte unchangeable promise and eternal pursuit.
Customer Photos
Customers visiting us
We have exported to over 40 countries and regions, including the USA, Russia, Australia, Ukraine, Pakistan, Philippines, Myanmar,
Cambodia, South Africa, Kenya, Zambia, Kuwait, UAE, Dominican, Ecuador, Venezuela, Panama, etc.
Our diesel generator sets are widely used in Mines, Railways, Field construction sites, Road traffic maintenance, Schools, Residences, Shopping malls, as well as Factories, Enterprises, Hospitals, Data centers, Communications, and other departments, as a backup or temporary power supply.
FAQ
Q1: Are you a trading company or manufacturer? A: We are a factory and exporter. Q2: What is the power range of your diesel generator? A: We can provide power from 6KVA-5000KVA Q3: How long is your delivery time? A: 1-4 weeks Q4: What are your terms of payment? A: T/T 30% in advance and TT 70% balance paid before shipment or 100% LC at sight. Q5: What is your warranty period? A: Our payment terms are 1 year or 1000 running hours whichever comes first. But based on some special projects, we can extend our warranty period. Q6: Do you offer OEM service? A: Yes Q7: How could I trust you? A: Diesel Generators Service & Supply comply with all the standards about Diesel Power Supply Equipments requirements. If you are not convinced by the pictures, videos, check-in reports, load tests, customer experiences and sales associates' knowledge about the generator you are interested in, then we invite you to come visit our expansive yard and shop facility to witness a load test and see the professional operation we have to go on here. Q8: What's the frequency of diesel generators? A: 50/60HZ Q9: What's the voltage of your diesel generator? A: 220/110V, 380/220V, 400/230V, 415/240V, 440/260V, 460/270V, and double voltage or high voltage. Q10: What's your MOQ? A: 1 set. Q11: What kind of Diesel Generators you can supply? A: We can supply: Open type diesel generators, soundproof type (silent type) diesel generators, trailer mounted diesel generators, containerised diesel generators, high voltage diesel generators, synchronized diesel generators.
