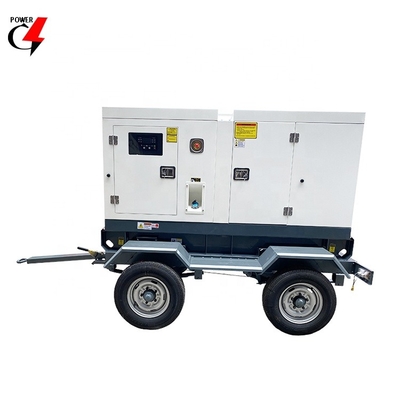

Best Selling 80kw/80 kw/100 KVA Commercial Silent Portable Industrial Standby Diesel AC Generator 3 Phase On Trailer Price 8 Hours Keep Running

1 Carton
MOQ
$7,999.00(1 - 9 Cartons) $7,599.00(10 - 29 Cartons) $5,999.00(>=30 Cartons)
Precio
Best Selling 80kw/80 kw/100 KVA Commercial Silent Portable Industrial Standby Diesel AC Generator 3 Phase On Trailer Price 8 Hours Keep Running
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Warranty: 1Year, 1 Year/1000 Running Hours
Certificación: CE,ISO
Model Number: GL-80
Rated Voltage: 220/380V/230/400V
Rated Current: 160A
Speed: 1500RPM/1800RPM
Frequency: 50HZ/60HZ
Certificate: CE/ISO9001
ATS: AISIKAI/SUYANG OPTIONAL
Controller: OPTIONAL
Fuel tank capacity: 8 Hours Continue Running
Product Name: trailer Genertor
Type: Silent(super Silent)or Open
Cooling method: Water-cooling System
Color: Customers' Requirement
Options: Automatic Transfer Switch/customer logo
Información básica
Certificación: CE,ISO, CE/ISO9001
Model Number: GL-80
Pago y Envío Términos
Packaging Details: plastic packing or plywood packing
Supply Ability: 100000000000 Set/Sets per Month
Descripción de producto


Best Selling 80kw/80 kw/100 kva 3 phase commercial silent portable industrial emergency diesel AC generator on trailer price
Diesel generator set optional configuration:
1.Control System
2.ATS
3.Rain proof unit
4.Silent type unit
5.Mobile trailer power station
6.Silent mobile power station
7.Oil heater, diesel heater, water heater.
8.Split type daily fuel tank, integrated base fuel tank
Specification
Technical specification parameters of 80KW series diesel generator set
Unit model
GL-80
Rated power
80KW
Rated output voltage
230V/400V
Rated power factor
0.8
Rated current
160A
Insulation grade
H
Rated speed
1500/1800rpm
Protection grade
IP22
Rated frequency
50/60HZ
Overall dimension (mm)
1850*750*1300
Voltage Control Methods
AVR
Overall weight
600KG
Technical specification parameters of diesel engine
Brand
GUANGLING
Model
GL4105ZD
Cylinders
4
Speed
1500/1800rpm
Bore * stroke（mm)
105*125
Power
80KW
Displacement
4.33
Fuel consumption rate
209g/kwh
Type
Straight line, four stroke
Lubrication mode
Pressure and splash type
Intake mode
Turbo charged
Start-up mode
24V DC electric start
speed regulation
Mechanical speed regulation
Cooling mode
Closed water cooling
Technical specification parameters of alternator
Rated power
80KW
Type
Brushless
Insulation grade
H
Protection grade
IP22/23
Phase
3-Phase,4-wire
Voltage Control Methods
AVR
Product name
Trailer
Type
Flat axle impact brake traction with 1 axles;
Flat axle impact brake traction with 2 axles;
Torque axle impact brake traction with 1 axle;
Torque axle impact brake traction with 2 axles;
Suitable for low speed
≤25 km/h
Suitable for high speed
≥60 km/h
Weight capacity (750kg~4000kg)
Use central(Single or double) axle chassis
Weight capacity (750kg~4000kg)
Use four-wheel chassis by wheel steering or Axle steering
Suspension
Rubber torsion bar suspension, Metal torsion bar suspension, Plate spring suspension
Wheels
ST225/75R15 load range D tires on white spoke 6-lug wheel;
ST245/75R16 load range E tires on white spoke 8 lug wheel.
Our Services
Guangling strictly adopt the international warranty.
Warranty: Guarantee for one year or 1000 running hours (accord to whichever reach first) from shipment date.
During the guarantee period, guangling will provide the free easy-damaged spare parts for problems caused
by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect man-
made operation.
After expiration, Guangling provides cost spare-parts maintenance for gensets .
FAQ
Q1: What is your MOQ of this item?
A: 1 pcs
Q2: What is the lead time?
A:2days after receiving your L/C or TT deposit.But if your order is some special engine and alternator, then the delivery time is longer.
Q3: Is it able to make customer's own brand name?
A: We can be your OEM manufacture with your authorization of brand.
Q4: Where is your Loading Port?
A: Any port in China. Usually Fuzhou port.
Q5: What is your payment term?
A: We can accept T/T 30% in advance, and the balance 70% shall be paid before shipment or L/C at sight, L/C deferred payment terms or west union.
Q6: What is your company's available production capacity?
A:1000 000000
