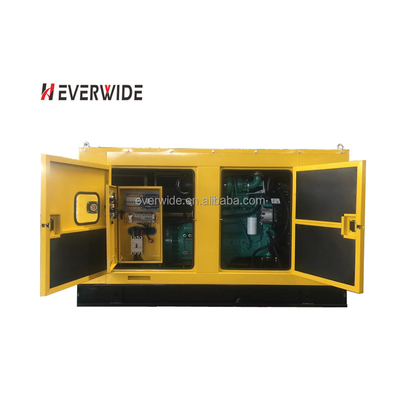

Super Silent Type FAW 80KW/100KVA Diesel ATS Generator Set Set With Engine Model CA6DF2D-14D

1 Set
MOQ
$7,350.00(1 - 5 Sets) $7,060.00(6 - 9 Sets) $6,850.00(>=10 Sets)
Precio
Super Silent Type FAW 80KW/100KVA Diesel ATS Generator Set Set With Engine Model CA6DF2D-14D
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Warranty: 1 YEAR, One year
Certificación: ISO, CE
Model Number: EF80GF
Rated Voltage: 400/230V
Rated Current: 144A
Speed: 1500rpm
Frequency: 50HZ
Cetificate: CE, ISO
Noise level: 75dBA
Function: ATS, AMF
Protection Class: IP23
Start Method: Electric start
Controller: Deepsea
Cooling Method: Closed Water-cooled
Fuel Tank: 8-10 Hours Running Time
Product Name: FAW 80KW/100KVA Diesel Power Generator Set
Información básica
Certificación: ISO, CE
Model Number: EF80GF
Pago y Envío Términos
Packaging Details: Inner plastic bag+plywood case/wooden pallet
Supply Ability: 300 Set/Sets per Month
Descripción de producto
Product Description

 Information of FAW 80KW/100KVA Diesel Power Generator Set

Shandong Everwide Power Technology Co., Ltd. is a factory that professional manufacturing generator from 10kva to 2500kva. It is coupled by world famous brand engine such as Cummins, Perkins, Deutz, Doosan, Yuchai, Weichai etc, with world famous brand alternator such as Stamford, Marathon, Leroy Somer, Mecc Alte etc. Our products are with advantage of Lower noise, lower vibration, easily starting, reliable performance, which can be widely used in factories, mines, banks, hospitals, ship building, telecommunications, oil fields, buildings, construction fields and other fields, or used as the standby power.

Product feature of FAW 80KW/100KVA Diesel Power Generator Set:

1. High strength base frame material can significantly reduce the vibration during operation.

2. Marvelous spray coating technology can effectively prevent against rain and noise.

3. Special sound absorbing material and system can maximally reduce noise to 65dBA/7m.

Specification of FAW 80KW/100KVA Diesel Power Generator Set:

FAW 80KW/100KVA Diesel Power Generator Set

Generator Data

Model

EF80GF

Prime Power

80kw/100kva

Standby Power

88kw/110kva

Engine Data

Model

FAW CA6DF2D-14D

Type

6 Cylinder inline,4 cycle

Displacement

6.55 L

Aspiration

Turbocharged

Bore*Stroke

110X115 mm

Governor Type

Electronic

Starting Voltage

24V

Lubricant Capacity

20L

Fuel Consumption

202 g/kw.h

Alternator Data

Model

274C

Optional

Stamford, Leroysomer, MeccAlte, Marathon

Excited Type

Brushless, Self-Excited

Power Factor

0.8

Voltage Adjust range

>5%

Voltage Regulation

<±1%

Insulation Class

H

Protection Class

IP23

Control Panel

Model

Smartgen, Comap or Deepsea

Protection

High/Low Voltage, High/Low Temperature, High/Low Frequency, Low fuel, Low Oil, Low coolant

Function

AMF, Synchronizing

Support

RS232,RS485,USB

Product Details

Company Information

Shandong Everwide Power Technology Co., Ltd. as a well-known diesel generators manufacturer with annual export value of 20 million U.S. dollars. We are committed to the R&D and manufacturing of diesel generator sets. Have a complete production line of generator sets, covering both industrial and marine diesel generators.

Shandong Everwide Power Technology Co., Ltd. has import and export rights, we has establish business relationship with 28 provinces, municipalities and autonomous regions, mainlly export products to over 40 countries and regions in Europe, Africa, South America, Latin America, Southeast Asia, West Asia and other, already establish a solid partnership with more than 20 countries in Asia, Africa, the Americas, Europe etc.

1. Product detailed images:

2. Factory show:

3. Workshop overview:

4. Installation cases:

Packaging & Shipping

Certificate

OEM Partner

Our Services

Warranty policy:

Guarantee for one year or 1500 hours whichever reach first from ex-factory date.

During the guarantee period, we will provide the free easy-damageable.

spare parts of diesel engine caused by our quality of production or raw material.

After expiration, we provides cost spare parts maintenance of gensets.

OEM Service:

We can provide professional OEM Service for customers.

1. Unique design and manufacture of generator according to customers requirement.

2. Customer logo printing or painting on the genset.

3. Installation and Operation manual neutral or headings can be design according to

customer requirement.

4.  Full warranty cover to support customers.

FAQ(Frequently Asked Question):

 1. What is your warranty period?

  Our payment terms is 1 year or 1500 running hours whichever comes first. But based on some special project, we can extended our warranty period.



 2. Does your generator have global warranty?

  Yes, most of our products like Cummins, Perkins, Doosan, Yuchai, Deutz, Volvo power generator enjoy the global warranty service. And the alternator we use like Leroysomer, Stamford, marathon also enjoy the global warranty service, so you do not need to worry about the aftersales service.



 3. Can you accept OEM?

  Yes, we can accept OEM.



 4. What is your payment  terms?

  We can accept T/T 30% in advance, and the balance 70% shall be paid before shipment or L/C at sight, L/C deferred payment terms or west union.



 5. What is your delivery time?

  Our normal delivery time is 15-20 days. But if your order is some special engine and alternator, then the delivery time is longer.
