High Quality 10HP Portable Diesel Welder Generator DY6000NW Diesel Welding Generator

5 Pieces
MOQ
High Quality 10HP Portable Diesel Welder Generator DY6000NW Diesel Welding Generator
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Warranty: 3months-1year
Certificación: CE
Model Number: Diesel welding generator
Rated Voltage: 220,230,240V
Rated Current: 20A
Speed: 3000rpm or 3600rpm
Frequency: 50Hz or 60Hz
Product Name: portable diesel welder generator
Power Factor(cos): 1
Continuous Load Rate: 40%
Welding Current Adujustment Range: 50-200
Excitation System: Controllable Separate Excitation
Starting System: Recoil or Electric start
Fuel: 0# in summer, -10# or -20 # in winter light diesel
Lub. oil: CD Grage or SAE 10w-30, SAE 15w-40
Package: craft Carton
Información básica
Certificación: CE
Model Number: Diesel welding generator
Pago y Envío Términos
Descripción de producto
1.banner



2.Related Products

High Quality 10HP portable diesel welder generator

Product Description

Parameter of portable diesel welder generator:

Model : DY5500EW DY6500EW

DY6500NW(SILENT)

Frequency (hz) 50 60 50 60 50 60
Rated Output(kw) 4.5 5 2.0 2.2 4.5 5
Voltage(v) 220,230,240V
Rated Current (A) 20.00
Power Factor(cosφ) 1.00
Continuous Load Rate 40%

Welding Current

Adujustment Range

50-200
Use electrodo (mm) 2.0-3.2 2.0-4.0 2.0-3.2
Engine Speed(r/min) 3000 3600 3000 3600 3000 3600
Excitation System Controllable Separate Excitation
Engine Model: DY186FAGE, 418cc, 10HP
Starting System Recoil or Electric start
Fuel 0# in summer, -10# or -20 # in winter light diesel
Lub. oil CD Grage or SAE 10w-30, SAE 15w-40
Structure Open-frame type Canopy Type
Dimensions(LxWxH)/mm 720*500*625   720*500*625 950*550*760
N.W(KG) 112 112 168
Package craft Carton

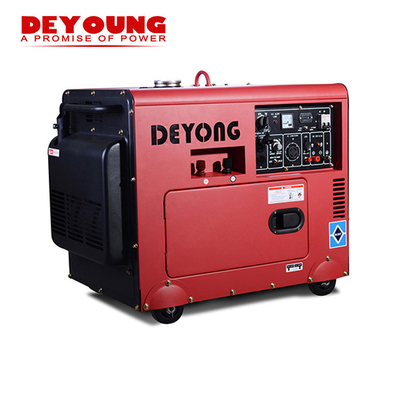

Picture of portable diesel welder generator:



4Company information



5.Our Service



6.FAQ

1.Q:What is the Quality Warranty for the products?

A:We offer 12months Guarantee for all of our products. Our company provides a guarantee on purchased goods from the date factory inspection, subject to the requirements of  the  consumer, product manuals, instructions and descriptions of those attached to the delivered goods.

The warranty is invalid under the follow situations::

1. Normal wear parts and assemblies;

2. Failure to comply with the operating instructions;

3. Using substandard consumables (fuel, motor oil);

4. Violation of the storage conditions, mechanical damage during transportation.

5 .Any changes to the model you purchased.

2.Q:Where is your factory located? How can I visit there?
A: Our factory is located in Changzhou city,Jiangsu Province, China, about 1 hours by fast train from Shanghai .2hours by flight  from Guangzhou. All our clients, from home or abroad, are warmly welcome to visit us!

3.Q:What is the quality and brand of main spare parts of your products?

A: All alternators are 100% copper wire

NANJING WEIFU injector pump and injector

C& U bearing, or NSK bearing as optional at extra cost.

D&F battery
4.Q:What is Minimum Order quantity?
A: MOQ 5-10sets

You are welcomed to consult for details.

5.Q:How does your factory do regarding quality control?
A: From the internal parts to the outside packing, we not only make standard quality test, but also think ahead for a better solution, except company QC system, We have achieved CE & SONCAP & SASO certificate.

6.Q:Can you help me arrange the shipment ?

A: Yes,we can,we have professional shipping company ,we could provide you quality shipping line and best price for you.

7.Q:Could you supply customized processing service ?
A:Yes,We can supply machine color,carton layout and logo stickers design.minimum order 30 sets.

8.Q:What is your delivery time ?

A:20-25 days.

9.Q: Can i to be your agent ?

A:Welcome! Please consult with our salesman!
