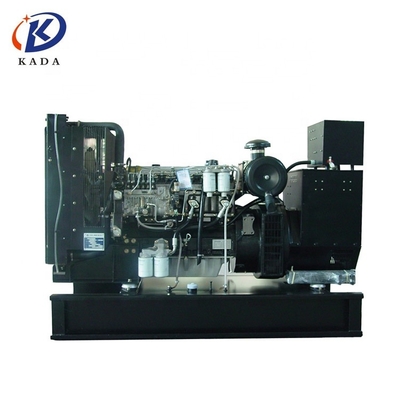

KADA Silent Silent Diesel Generator 80 KW Sound Proof Zambia Silent Generator Set Diesel Enclosures

1 Set
MOQ
$12,765.00(1 - 2 Sets) $12,565.00(>=3 Sets)
Precio
KADA Silent Silent Diesel Generator 80 KW Sound Proof Zambia Silent Generator Set Diesel Enclosures
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Warranty: 3months-1year
Certificación: CE
Model Number: LS-80KW
Rated Voltage: 380V
Rated Current: 152A
Speed: 1500RPM
Frequency: 50HZ
Weight: 1250KG
Type: Generator
Brands: KADA, OEM
Style: Silent
Connecting type: 3 phase, 4 wire
Cooling method: Water cooled
Protection grade: IP22
Speed governing: Mechanical/Electric governor
Starting method: Electric Start, By batteries
ATS: Optional
Fuel Tank: 10-12 hours
Información básica
Certificación: CE
Model Number: LS-80KW
Pago y Envío Términos
Packaging Details: generator : packing under shrunk plastic film or wooden
Supply Ability: 500 Set/Sets per Month generator
Descripción de producto
Introduction

KADA Diesel generator set : Safety – Stability – Economy - Reliability Power

1. Our cooperate with famous diesel engine –Powered by Cumis, Peks, Detz , Doosan, Weichai, Ricardo, Yangdong,ect.
2. Equipped with famous Brushless alternator – Optional Stamford, Leroy Somer, Marathon, KADA.
3. Equipped with 50°C radiator with fan, enough engine cooling system guarantee long time working.
4. Equipped with advanced generator set control system, ATS system, remote control system, parallel operation system.
5. Generator set use High-quality steel are thickness canopy -- 2MM to 6MM
6. Equipped with high density sound-absorbing material -- sound insulation, fireproofing
7. Generator equipped with 12V/ 24V DC battery with charger, battery connects wire.
8. Generator equipped with 10-12 hours fuel tank with fuel indicator, long time for working.
9. High protect class control box and power output box. IP55, Waterproof, Electric leakage protect, Breaker
10. New design of turn-back type for air inflow & air outlet which can reduce the noise and improve engine efficiency.
11. Beautiful & practicably design, Bottom hole for forklift, Water outlet & oil outlet for easy maintenance
12. Double open door on both sides of the Gensets. Spacious doors can check for every part of the engine and alternator.
13. All new design for diesel generator set of Silent, Supper silent, Soundproof, Trailer type, Container type.

Diesel generator set Silent / Soundproof type / Open type / Trailer type / container generator

Our generator set compliance with all main standards, such as : GB/T2820, ISO8528,IEC34, CE, EPA Tier4 standard
Diesel generator Prime output power: from 5KVA to 2500KVA
Rated voltage: 120V/240V, 220/380V, 230V/400V, 254V/440V etc. other voltage is optional
Generator Phase and connecting: 3 phase, 4wire.
Rated frequency: 50Hz@1500rpm or 60Hz@1800rpm
Alternator excited type: Brushless, self excited or PMG optional
Alternator Insulation: Class H
Alternator Protection: IP21 ~ IP23
Voltage regulation: AVR automatic control 1%
Altitude above sea level: ≤1000 meters
Ambient air temperature: ≤40°C
Relative air humidity: ≤ 90%

Specification
Technical data
Genset Model:
LS-80KW
Prime Power :
80KW/100KVA
Rated Voltage:
400/230V
Frequency:
50Hz
Power Factor:
0.8(lagging)
The regulating rate of steady voltage :
≤±0.5%
The regulating rate of instantaneous voltage :
≤-15%/ +20%
The time of steady voltage :
≤1.5sec
The waving rate of voltage :
≤1.0%
The regulating rate of steady frequency :
≤3%
The regulating rate of instantaneous frequency:
≤±10%
The time of steady frequency:
3sec
Dimension (L×W×H) (mm) :
2700*930*1300
Genset weight (kg):
1350
Diesel Engine Brand:
LOVO
Number of Cylinders :
6
Rotating Speed :
1500/1800RPM
Cycle:
Four stroke
Type :
waste gas turbine boost,direct spurting type
Bore×Stroke(mm):
100*127
Displacement(L):
6
Lubricating Capacity(L):
20
Speed Governor:
Electrical
Cooling System:
Water-cooled
Speed Stability (%):
≤5%
Fuel Consumption at 100% Load:
20L/H
Starting Method:
 DC24V Electrical starting
Alternator Brand:
KADA
Model:
KD274C
Number of Phase:
3
Connecting Type:
 Three Phase and Four Lines
Number of Bearing:
 1
Grading Protection:
IP22
Altitude :
≤1000m
Exciter Type:
Brushless (AVR automatic voltage regulating)
Insulation Class:
H degree
The components of the genset:
(1) Lovo Diesel Engine; (2)KADA Alternator; (3) Control Panel
The control panel is Quadruplication protection control panel, with the display of frequency table/water temperature/schedule/battery voltmeter. The genset with low oil pressure, high water temperature, over speed emergency, stop and other pre-protection.
Specification

Brief Introduction

All diesel generating sets include diesel engine, alternator and control box.Our diesel engine is powered by Cumis, Peks, Detz , Doosan, Weichai, Ricardo, Yangdong,ect.and equipped with famous Brushless alternator – Optional Stamford, Leroy Somer, Marathon, KADA.and equipped with advanced generator set control system, ATS system, remote control system, parallel operation system, optional control model, Deep sea, Smartgen , ComAp .ect.


Generator Supply Scope

1. Brand New water cooled diesel engine
2. Brand New Stamford,AC alternator, Ratings: 400/230V, 3Ph, 50Hz, 1500Rpm, IP23, H insulation class
3. Radiator with engine driven fan mounted on skid.
4. CHNT,DELIXI,MCCB mounted
5. Anti-vibration mountings as to ensure the compete genset running under stabilization.
6. 24V AC Electric start system and engine driven battery charger, lead-acid type starting batteries

Generator Supply Scope

7. Industrial silencers with flexible connects and elbow
8. Base fuel tank, with fuel gauge integrated in the base frame of generating set
9. Test report of generator, Set of drawings and OEM manuals
10.Optional Choice:Soundproof, ATS (automatic transfer switch), AMF panel, Trailer, Parallel system by your extra choose Engine

Canopy

All canopy designed with modular principles
All metal canopy parts painted by electrostatic polyester power paint
Water proof design ensure that the noise level be controlled in small scope
Convenient to lift and move
Easy to maintain and operate.

Control Systerm

Standard control panel include
 digital genset control model, voltmeter, frequency meter, ampere meter, water temperature gauge, oil temperature gauge, oil pressure gauge, emergency button, preheating button, battery voltage gauge, running calculagraph, fuel level meter, circuit breaker,ect

1. Low Oil Pressure ,Volt adjuster and frequency adjuster
2. Over/under voltage ,Over current,Over /under speed
3. Emergency stop ,Fail to start ,High Engine Temperature
