Caracteristicas

Especificaciones

Condition: New

Type: Submerged Arc Welding Equipment, Generator Welder

Video outgoing-inspection: Provided

Machinery Test Report: Provided

Marketing Type: Ordinary Product

Warranty of core components: 1 Year

Core Components: Engine, Motor

Arc Current: 45-170A

Pulse Frequency: Standard

Pilot Arc Current: Standard

Rated Duty Cycle: Standard

Motor Type: AC Motor

Dimensions: Standard

Usage: Generator Welder

Voltage: 115/230V, 220/230/240V

Power: 3.5-.5.5KW

Weight (KG): 85 KG

Warranty: 1 Year

Key Selling Points: Multifunctional

Applicable Industries: Machinery Repair Shops, Manufacturing Plant, Retail, Construction worksÂ , Energy & Mining

Showroom Location: None

Function: Dual Function

Power factor: 1.0

Duty cycle: 35%@220A 60%@220A

Welding method: DC Welding

Rated input capacity: 5.8KVA

MOQ: 50pcs

Max. Welding Capacity: 220A

After-sales Service Provided: Video technical support

Información básica

Pago y Envío Términos

Packaging Details: Cartons, Wooden cases.

Supply Ability: 1000 Piece/Pieces per Month

Descripción de producto

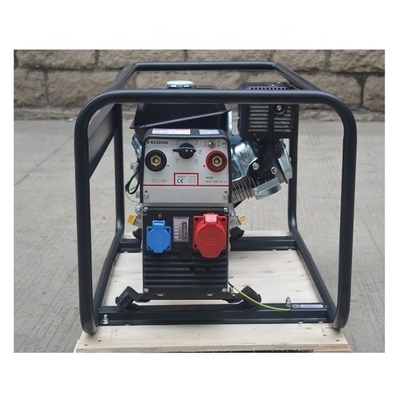

HEW Gasoline Diesel Engine Generator 170A 200A 220A DC Welder

1. Specifications:

Portection: IP23

Weldable Electrodes: All types, including basic and cellulosic.

Supplied with autoresettable thermal protection against overloads.

Can be used as both alternator generator and welder.

Standard single-phase output. On request three-phase out put.

2.Data Sheet

MODEL	HEW170		HEW200		HEW220
WELDING PARAMETERS
WELDING CURRENT	45-170	A	50-200	A	40-220	A
MIN/MAX WELDING VOLTAGE	21.8/26.8	Volt	22/28	Volt	21.6/28.8	Volt
WELDING SERVICE at 50%	170	A	170	A	170	A
MAX DIAMETER OF ELECTRODE
RUTILE	4	mm	5	mm	5	mm
BASIC	4	mm	5	mm	5	mm
CELLULOSE	4	mm	5	mm	5	mm
TREE PHASE
POWER (LTP)					5.5/6.1	kW/kVA
POWER (COP)					5.2	kVA
SINGLE PHASE
POWER (LTP)	3.5	kVA	4.7	kVA	2.4/2.7	kW/kVA
POWER (COP)	3.0	kVA	4.0	kVA	2.3	kVA
POWER SPECIFICATIONS
VOLTAGE	115/230	Volt	115/230	Volt	400/230	Volt
FREQUENCY	50	Hz	50	Hz	50	Hz
POWER FACTOR	1	cos	1	cos	0,8/0,9	cos
ENGINE
BRAND	Honda/Loncin		Honda/Loncin		Honda/Loncin
MODEL	GX340/LC188F		GX390/LC188F		GX390/G420F
FUEL	Petrol		Petrol		Petrol
DISPLACEMENT	1	cc	1	cc	1	cc
SPEED	3000	rpm	3000	rpm	3000	rpm
CYLINDER	1 inclined		1 inclined		1 inclined
COOLING SYSTEM	Air		Air		Air
STARTING SYSTEM / ELECTRIC CIRCUIT	Recoil		Recoil		Recoil
CONSUMPTION
CONSUMPTION at 75% of load	1.8/2.0	L/h	2.1/2.3	L/h	2.2/2.4	L/h
TANK CAPACITY	6.1/6.5	L	6.1/6.5	L	6.1/6.5	L
RUNNING TIME at 75% of load	3.4/3.3	h	2.9/2.8	h	2.8/2.7	h
NOISE EMISSION
NOISE LEVEL LWA	95	dB (A)	97	dB (A)	98	dB (A)
ACOUSTIC PRESSURE at 7 m	71	dB (A)	73	dB (A)	74	dB (A)
DIMENSIONS AND WEIGHT
LENGTH	825	mm	825	mm	825	mm
WIDTH	560	mm	560	mm	560	mm
HEIGHT	535	mm	535	mm	535	mm
WEIGHT (dry)	80	Kg	84	Kg	85	Kg
DIMENSIONS AND WEIGHT(PACKAGE)
LENGTH	840	mm	840	mm	840	mm
WIDTH	580	mm	580	mm	580	mm
HEIGHT	560	mm	560	mm	560	mm
WEIGHT (G.W.) (CARTON)	83.0	Kg	87.5	Kg	88.5	Kg
20FT	104	Set	104	Set	104	Set
40HQ	224	Set	224	Set	224	Set
SOCKET TYPE
	1 X SCHUKO		1 X SCHUKO		1 X SCHUKO
	1 x 250V 16A		1 x 250V 16A		1 x 400V 16A
ALTERNATOR AND SOCKET PROTECTION
ELECTRIC PROTECTION	IP 23		IP 23		IP 23
SOCKET PROTECTION	IP 44		IP 44		IP 44
MAGNETOTHERMAL PROTECTION	YES		YES		YES
DOUBLE CONNECTOR FOR WELDING	YES		YES		YES
PROTECTION OIL GUARD	YES		YES		YES

3.Details in Pictures:
